Optical Property
| Focal Length | 35mm | F/# | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | DLC |
| Calculated Average Transmission | >84% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 2m to infinite | Distortion (Diagonal FOV) | <2% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | / |

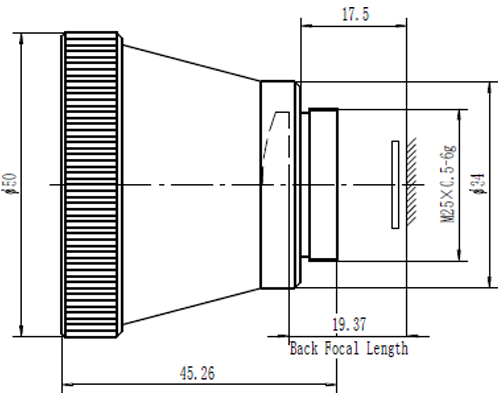

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ50x45.26 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 11.5mm |
| Connector | M25x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 3.1°x2.4° | 6.3°x4.7° | 7.5°x5.7° | 12.5°x9.4° | |
| 17μm | 4.5°x3.3° | 8.9°x6.7° | 10.7°x8° | 17.7°x13.3° | |
| 25μm | 6.5x4.9° | 13°x9.8° | 15.6°x11.7° |
