Optical Property
| Focal Length | 35mm | F/# | 1.2 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >88% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 1m to infinite | Distortion (Diagonal FOV) | <3.5% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | / |

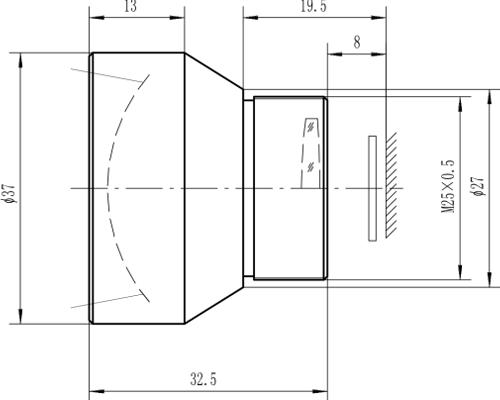

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ37x32.5 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 8mm |
| Connector | M25x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 3.1°x2.4° | 6.3°x4.7° | 7.5°x5.7° | 12.5°x9.4° | |
| 17μm | 4.5°x3.3° | 8.9°x6.7° | 10.6°x8.0° | 17.4°x13.2° | |
| 25μm | 6.5x4.9° | 13°x9.8° | 15.4°x11.7° |
