Optical Parameters:
| Focal Length Range | 30mm to 90mm | F Number(#) | 1.4 |
| Wavelength Range | 8~12 micro | Focusing Range | ∞~25mm |
| Horizontal FOV | 20.6°/4.2° | Coating | DLC and AR |
| Average Transmission | >70% | Working Temperature | -40℃ to +60℃ |
| MTF at Axis | >0.5@20lp/mm | MTF at maximum FOV | >0.3@20lp/mm |
Mechanical Parameters:
| Mechanical Connection | M54x1 | Focus Mechanism | Motorized |
| Flange Back Distance | 20mm | ||

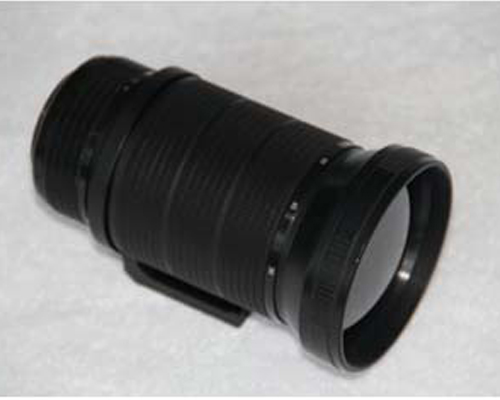

It is a continuous zoom lens module, with a motorized mechanism. The focal lengths are variable between 30mm and 90mm, with an f-number of 1.4.
