Specifications:
| Clear Aperture | 13mm |
| Wavelength | 240-1400nm |
| Dimension | Ф25.3x42.5mm |
| Extinction Ratio@1064nm | >7000:1 |
| Single Pass Optical Transmission | >98.5% |
| Wavefront Distortion | <λ/8 |
| Quarter Wave Voltage | 3000V+/-200V |
| Capacitance | <8pF |
| Damaging Threshold | 750MW/cm^2@1064nm,10ns,10Hz |

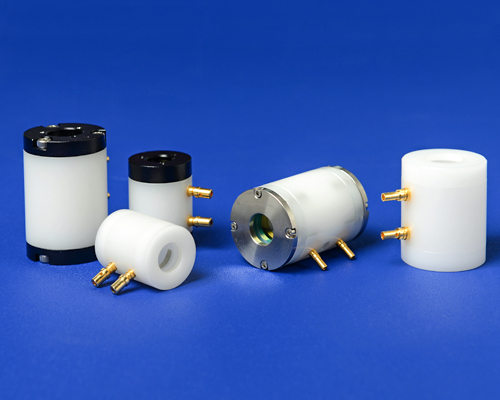

This one module of DKDP pockels cells features extremely high extinction ratio (>7000:1) ,High deuteration (>99%), compact design and easy adjustment, with single pass optical transmission, no photorefractive damage , no static birefringence, excellent electric-optical properties and are sealant/adhesive free, also resistant to environmental temperature.
Hangzhou Shalom EO offers series of DKDP pockels cells with high deuteration (>98%), low capacitance and fast rise time and high transmission, high extinction ratio, the largest aperture of 50mm is available.
Drawing:
Application Notes:
With excellent physical and optical property, DKDP series Pockels cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal E-O Q-switches used in pulse laser systems, including:
Application Notices on DKDP Series Q-switch:
