Моторизованные объективы 200 мм f/2,0 с аккумулятором для тепловизионных камер MWIR

Code: 311-007

Inquire Us

Optical Property

Focal Length 200mm Calculated Average Transmission >75%
F/# 2.0 Operating Temperature Range -20℃ to +60℃
Operating Wavelength Range 3.7μm to 4.8μm Focus Range 10m to infinite
Coating on Front Surface Exposing to Air DLC Distortion(Diagonal FOV) <2%



Mechanical Property

Focusing Mechanism Motorized Installation Way Bayonet

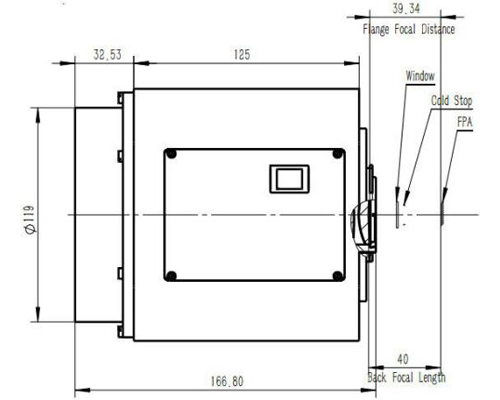

Weight / Flange Focal Distance 39.34mm
Materials of Lens Housing Anodized aluminium Driving Voltage 12V
Max. Dimensions 140x140x166.8 Sealing Grade IP67



FOV(H X V) 320x256 640x512
15μm   2.7°x2.2°
30μm 2.7°x2.2°
200мм
М200Ф2.0-мот
2.0
Моторизованный
Запросить
2 месяца
