Specifications:
| Materials | SAW grade LiNbO3 crystals | Orientation | Z-cut |
| Diameter | 150(±0.2)mm | Thickness | 1.0(±0.05)mm |
| Surface Finish | DSP | TTV | 10μm |
| BOW | 30μm | Primary Reference Flat | 57.5+/-2mm |
| Secondary Reference Flat | Optional | Polished Surface Roughness | <1nm |
| Edge Rounding | Compliant with SEMI M1.2 Standard/refer to IEC62276 |

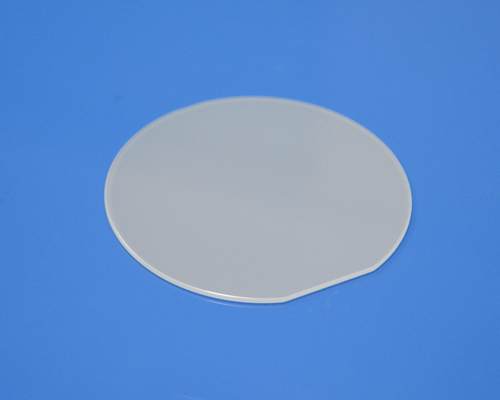

Hangzhou Shalom EO offers the SAW grade lithium niobate (or LiNbO3) crystals and wafers, advanced facilities are equipped for crystals growing, wafer cutting, wafer lapping, wafer polishing and wafer checking, all finished products are passed at Testing of curie Temp and QC inspections.
The SAW grade or acoustical grade LiNbO3 crystals boules or ingots, blanks, wafer blanks and polished wafers are available upon customer's request.
